BEP Marine 720 Heavy Duty On/Off Battery Switch 600A

Durable battery switch ideal for larger vessels

The BEP Marine 720 Heavy Duty On/Off Battery Switch fits into the same contour lock system as used on the battery distribution system. Rated at 600A continuous and 2500A cranking. It is well suited to larger vessels. As with the 701, the 720 can be recessed or surface mounted. The 720 uses the same style of self cleaning sliding contact as used in the 701 and uses the same label sheet.

BEP Marine 720 Heavy Duty On/Off Battery Switch
Specifications:

• Continuous Rating: 600 Amps DC
• Intermittent Rating: 800 Amps DC
• Cranking (Peak) Rating: 2500 Amps DC
• Voltage Rating: 48 Volts DC
• Operation: On / Off
• Mounting: Recessed or Surface
• Termination Stud Size: 2 x 12 mm (1/2 inch)

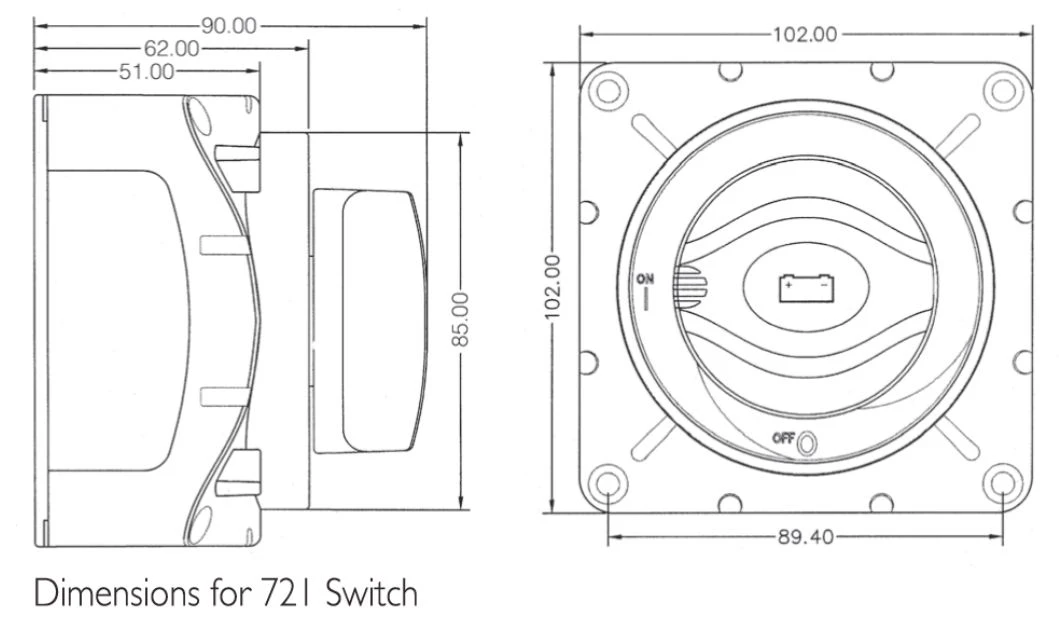

• Dimensions: 102 x 102 x 90h mm (4 x 4 x 3.5h inches)
• Tin plated copper studs and nuts
• Ignition protected
• Termination Stud Size: 2 x 12 mm (1/2 inch)
