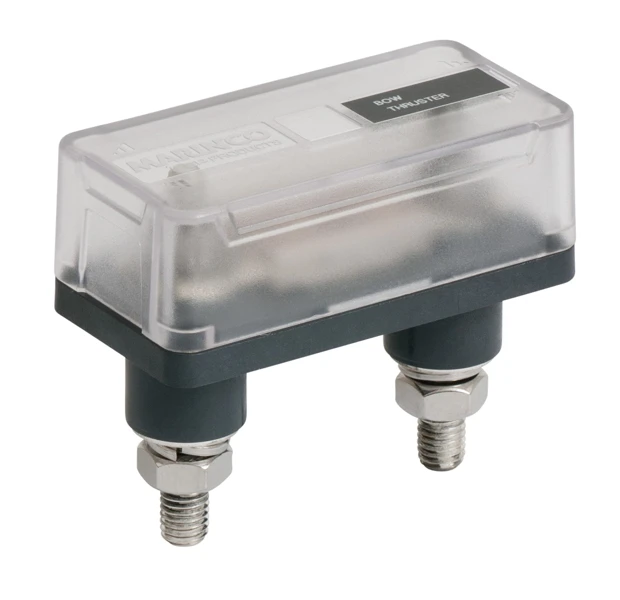

BEP Marine ANL Through Panel Fuse Holder – 500A

The ANL Through Panel Fuse Holder – 500A is an
innovative, through-panel mounting fuse holder (Patent Pending)
that offers the user easy visual inspection of fuse state, and
easy/safe access to change fuses if blown. It provides
high-capacity fusing, fast response, high interrupt ratings (up to
3,000 Amps DC), and is ideal for protecting todays demanding
onboard power electronics technology including inverters and
battery chargers. It can also protect wiring from short circuits,
for example as a main fuse to protect house circuits, protection
for digital switching main feed circuits, or heavy duty loads.

ANL Through Panel Fuse Holder – 500A Features:

• Convenient fuse inspection and replacement
• Compact footprint saves space
• Radiused connection points improve cable routing options
  (back-to-back lugs fit at any angle -90 degrees to +90 degrees
  )
• Innovative clear cover provides insulation/protection
• Fuse viewing window in cover aids visual inspection of fuse
  state
• Label recess on cover allows fitting up to 1/2 width (12.7mm)
  printed labels from handheld label printers
• Insert moulded studs offer superior mechanical strength

ANL Through Panel Fuse Holder – 500A
Specifications:

• Designed for the harsh marine environment
• Studs have anti-seize lubrication applied to prevent thread
  galling
• Cable connection studs: 10mm (3/8)
• Fuse mounting studs: 8mm (5/16). Also allows 10mm (3/8) fuses
  to be used
• Fuse type: ANL or ANN (very fast acting)
• Amperage: 35-500A
• 50 VDC, or determined by fuse fitted (if lower)
• High temperature, fibre reinforced plastic base provides
  strength and chemical resistance
• Clear polycarbonate cover
• Tinned CDA260 highly conductive brass for improved strength on
  integral studs, stainless steel nuts and washers for longevity in
  the marine environment
• All threads are metric
