BEP Marine BEP Battery Distribution Cluster For Twin Engine With Two Battery Banks

Dual battery charging made easy!

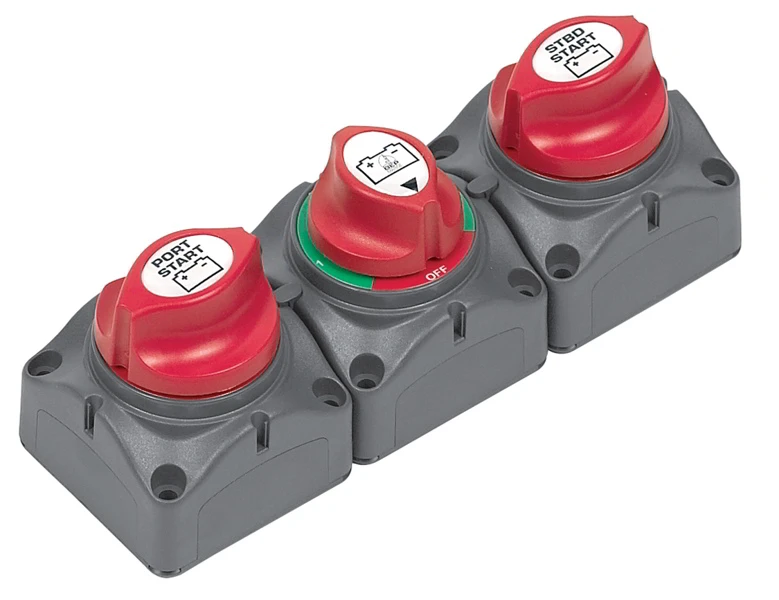

The 715-S BEP Battery Distribution Cluster For Twin Engine
with Two Battery Banks allows you to switch the house
loads between port and starboard batteries. You can also use the
selector switch to parallel the batteries .

BEP Battery Distribution Cluster For Twin Engine with Two
Battery Banks Features:

• Contour lock system, allowing it to be locked together with
  other switches
• A control knob which cannot be removed whilst in the On or Off
  position, however can be removed by switching to an anti-clockwise
  45º position
• Removable rear cover insulating the rear terminals against any
  short circuits and ensures the switch meets ABYC requirements

BEP Battery Distribution Cluster For Twin Engine with Two
Battery Banks Specifications:

• Continuous rating: 275 Amps DC
• Intermittent rating: 455 Amps DC
• Cranking rating: 1250 Amps DC
• Voltage rating: 48 Volts DC
• Operation: On / Off
• Mounting: recessed or surface
• Termination stud size: 2 x 3/8” (10mm)

Note: This product is water resistant but is
NOT designed to be submerged.
