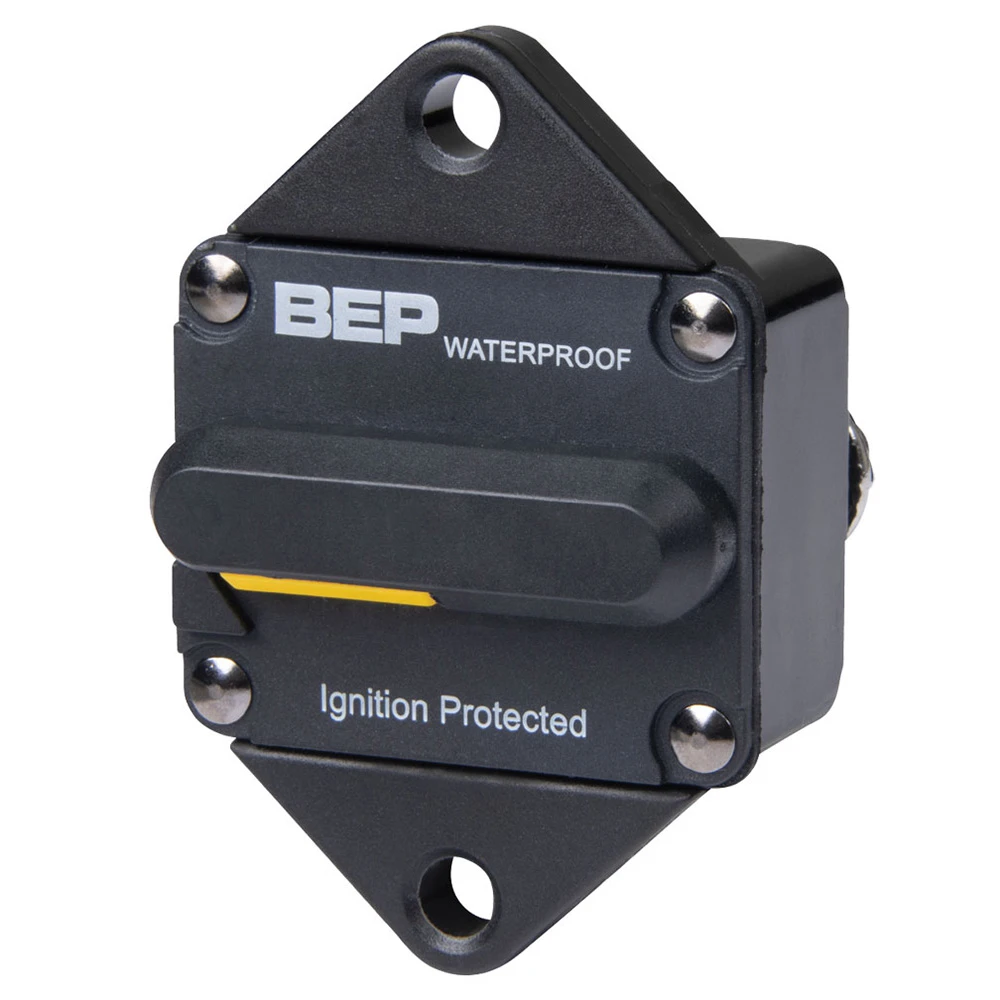

BEP Marine BEP Heavy Duty Switchable Reset Circuit Breaker – Panel Mount

Protect your wires and motor on-board

The BEP Heavy Duty Switchable Reset Circuit Breaker – Panel
Mount automatically cuts the power to prevent damages on
your boat motor and wiring. This single pole thermal type
switchable reset circuit breaker is typically used in auxiliary and
accessory circuits. Each breaker is sealed for engine compartment
and bilge area applications. The push to reset function ensures
essential 24 hour circuits cannot be switched off
inadvertently.

BEP Heavy Duty Switchable Reset Circuit Breaker – Panel
Mount Features:

• Mounting: Panel mount
• Applications: Auxiliary and accessory circuits – marine
  applications, battery chargers and DC audio systems
• Indicator: Unique reset mechanism providing visible indication
  of tripped condition
• Sealed for engine compartment and bilge area
  applications
• Stud insulators provided on covered units with F (surface
  mount) bases; tin plated copper studs, brass rivets, and stainless
  steel locking nuts

BEP Heavy Duty Switchable Reset Circuit Breaker – Panel
Mount Specifications:

• Ratings: 30-150A; 30V DC, 3000A interrupt capacity
• Operating temperature: -25°F (-32°C) to 180°F (82°C)
• Storage temperature: -30°F (-34°C) to 300°F (149°C)
• Housing: thermoset plastic, UL rated 94VO; 311°F
  (155°C)
• Terminal stud torque: 50in-lb (5.6Nm) max
• Ingress protection rating: IP67
• Approvals: complies with SAEJ1625, J1171 and UL1500
  (ignition-protected) specifications

Note: When sizing circuit breakers find one
for the current you need with a higher voltage than your
system.
