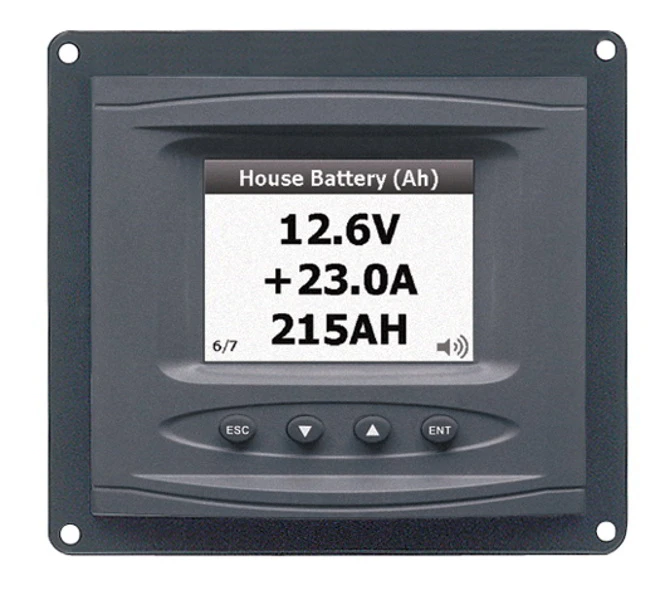

BEP Marine BEP Panel Mounted DC Systems Monitor

The contour digital BEP Panel Mounted DC Systems
Monitor offers a comprehensive range of functions to allow
full monitoring of your batteries and charging systems. Monitors
voltage on up to 3 battery banks, Amps for charge and discharge and
capacity remaining in amp hours /percentage utilising peukerts
exponent (house bank only) with the added function of a bilge
monitor allowing 24 hour monitoring of your bilge pump. This meter
is an important addition to modern battery management systems.
Selectable legends allow full information to be shown on the screen
to avoid confusion, unlike other digital meters available, which
only show confusing digits. LCD screen draws 70% less than
equivalent LED screens. Comes supplied with shunt, part No.
LB-450-50. Installation kits are available in 5m and 10m
lengths.

BEP Panel Mounted DC Systems Monitor Features:

• 1/10th of an Amp resolution in the range of +/- 0-50A
• The Matrix Monitors use a dot Matrix LCD allowing for Full
  screen information on Function selected
• Voltage monitoring for up to 3 battery banks
• 12 custom selectable legends eg: Start Battery, House Battery
  etc.
• Hi/Low voltage alarm on all 3 banks
• Amps charge and discharge on house bank only
• Meter supplied with a 450-50mV shunt
• Capacity remaining in amp hours and percentage
• Software utilises Peukert’s exponent
• Suitable for use on battery banks 60-3000 Amp hours
• Low amp hour alarm

BEP Panel Mounted DC Systems Monitor
Specifications:

• Battery Capacity: 220AH
• Charge Efficiency: 85%
• High Volts Alarm: 15.00V
• Low Amp Hours: 100AH
• Low Volts Alarm: 11.00V
• Peukert’s Exponent: 1.25
• Reset Capacity: 5 amps
