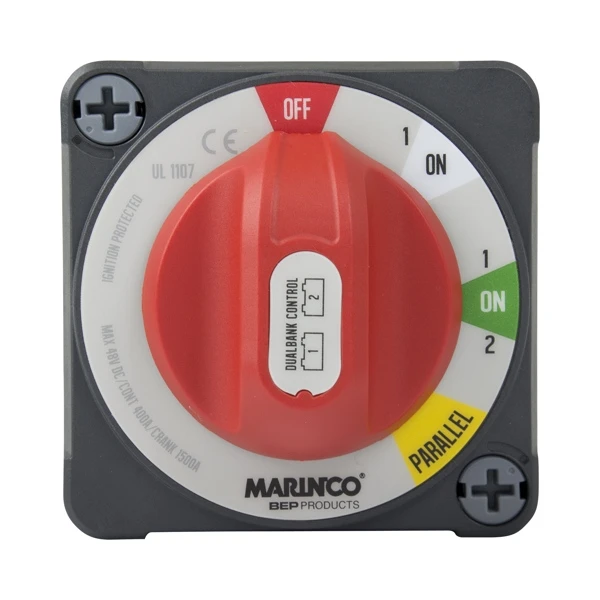

BEP Marine BEP Pro Installer 400A EZ-Mount Dual Bank Control Battery Switch

Another addition to BEP multi award winning Pro Installer EZ
Mount range, the innovative Dual Bank Control switch is like 3
switches in one, House, Start, and Emergency Parallel. Offering
easy intuitive control for the boater, the Dual Bank Control switch
features a unique isolated-On position which allows use of house
loads and VHF radio if the engine needs to be electrically
isolated, or allows the engine to be isolated during servicing
while still providing power to house loads (for lighting, stereo,
fridge etc). For boats or vehicles with single Engine and House
battery bank, Dual Bank Control allows the use of optimized battery
banks for their respective loads; an appropriately sized deep cycle
bank for House loads, and thin plate starting batteries for the
Engine. Further, sensitive electronics are isolated from starter
motor induced voltage spikes because House and Engine loads are
separated during normal operation, unlike Selector battery
switches. As easy as 1, 2, 3, these revolutionary EZ Mount battery
switches allow you to wire from the front for the easiest surface
mounting. With their shared interconnection height, EZ-Mount
battery switches ‘cluster’ directly with the Pro Installer Busbar
Range, resulting in the fastest, most compact installations.
Optimized cable access makes installation a breeze.

Features:

• Tested to UL1107 ignition protection, CE
• Tinned copper 10mm (3/8 inch) studs
• Stainless steel washers and nuts
• Fiber reinforced plastics
• 400A Continuous / 600A 5 minutes Intermittent / 1500A 10
  seconds Cranking (cable size to achieve ratings 120mm, 4/0, smaller
  cable size will reduce the Amp rating)
• Waterproof to IP67
• Same interconnection height as Pro Installer
• Removable knob allows isolation during servicing
• 3 removable side plates for protection
• Industry standard 3.85 x 3.85 inch footprint
• For surface mounting only
• Each Pro Installer battery switch is fully tested for pressure
  sealing, rotation force and electrically load tested
• 4x M10 (3/8 inch) Connection Studs
• Module dimensions LxWxH: 98 x 98 x 93mm (3.85 x 3.85 x 3.64
  inch)
