BEP Marine BEP TS1 Ultrasonic Tank Sender

Connects directly to the BEP 600-TLM-N digital tank
monitor

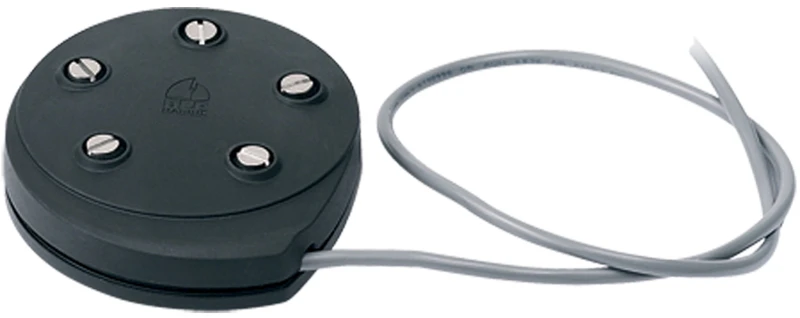

The BEP TS1 Ultrasonic Tank Sender TS1 is an
advanced tank sender based on ultrasonic measurement technology.
This device handles common outputs – 240-33, 10-180, Vetus 10-300
and 0-5 V tanks from BEP, Teleflex, Faria, VDO and many other
popular instrument brands.

BEP TS1 Ultrasonic Tank Sender Features:

• Low Profile Design and standard SAE 5 hole mounting pattern,
  allowing it to be retrofitted to practically all other sender
  brands
• Can be set for tank dimensions via computer using BEP Marine’s
  proprietary TS1 software, avoiding experimental tank filling on
  site
• Connects directly to the BEP 600-TLM-N digital tank monitor
  when configured to a 0-5 V output
• Is set for 0-2000 mm depth off the shelf (not suitable for tank
  depths less than 200 mm)

BEP TS1 Ultrasonic Tank Sender Specifications:

• Operating voltage: 10-32 V
• Current draw: 25 mA with 5 V gauge output
• Measurement method: Acoustic sonic measurement
• Tank depth: 0-2000 mm (6.5 ft)
• Accuracy Distance: 0-2000 mm (6.5 ft) at 2 mm accuracy
• Mounting: SAE 5 stud mounting pattern with gasket, seal and
  screws (top mount only)
• Environmental temperature: 4-65 deg C
• Chemical resistance: Petrol, diesel, water, toilet
  chemicals
• Tank type style: Metal and plastic with non linear
  capacity
• Works with petrol, diesel, fresh water, grey water and black
  water
