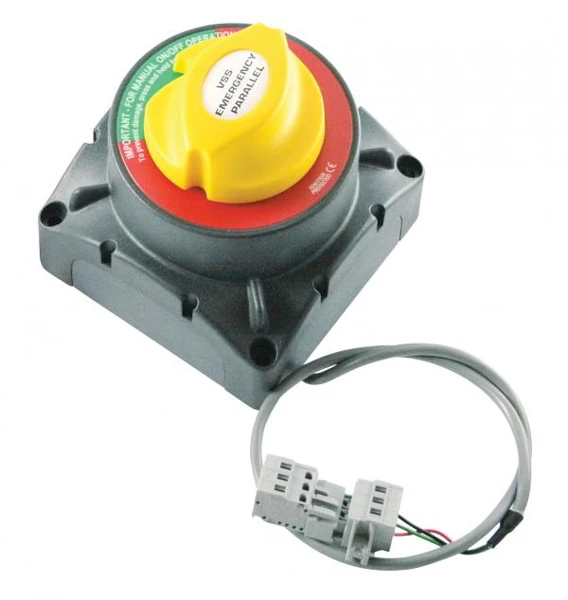

BEP Marine Dual Operation VSS (Voltage Sensitive Switch) HD Optic 12/24V 500A MC6

The Dual Operation VSS (Voltage Sensitive Switch) HD Optic
12/24V 500A MC6 automatically senses connected battery
bank voltages and provides optimal, efficient charging of the
second bank. The VSS allows for independent battery banks to be
combined or isolated based on the presence of a charging source
(such as an engine alternator or battery charger), while also
offering remotely activated, high current, emergency parallel
connection.

Designed and constructed for longevity in the marine environment
the Dual Operation VSS (Voltage Sensitive Switch) HD Optic
12/24V 500A MC6 is manufactured using tinned copper
conductors, stainless steel nuts, and high temperature, fibre
reinforced plastics. The units are ignition protected, provide
On/Off switching operation, and may be recessed or surface mounted.
The remote emergency parallel function can be operated through a
momentary button on the dash which will parallel the batteries for
10 minutes. Once this 10 minutes has passed, if the voltage is high
enough, the voltage sensitive switch will stay engaged. If not, it
will disengage.

Dual Operation VSS (Voltage Sensitive Switch) HD Optic
12/24V 500A MC6 Features:

• Dual battery sensing
• Manual override option
• Dual 12/24 volt operation (both banks must be same
  voltage)
• Low power consumption (<6mA)
• Lowered cut in voltage (13.3/26.6V) suits low output
  alternators and high temperature environments
