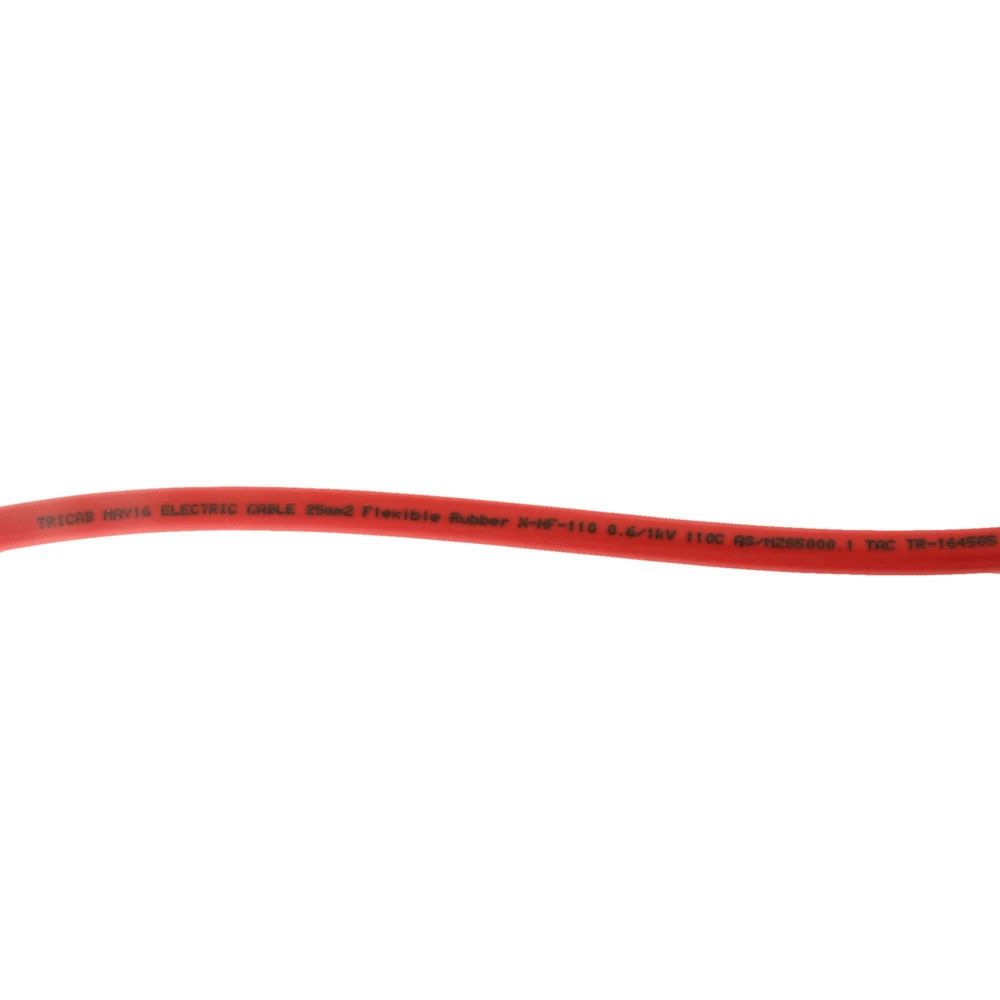

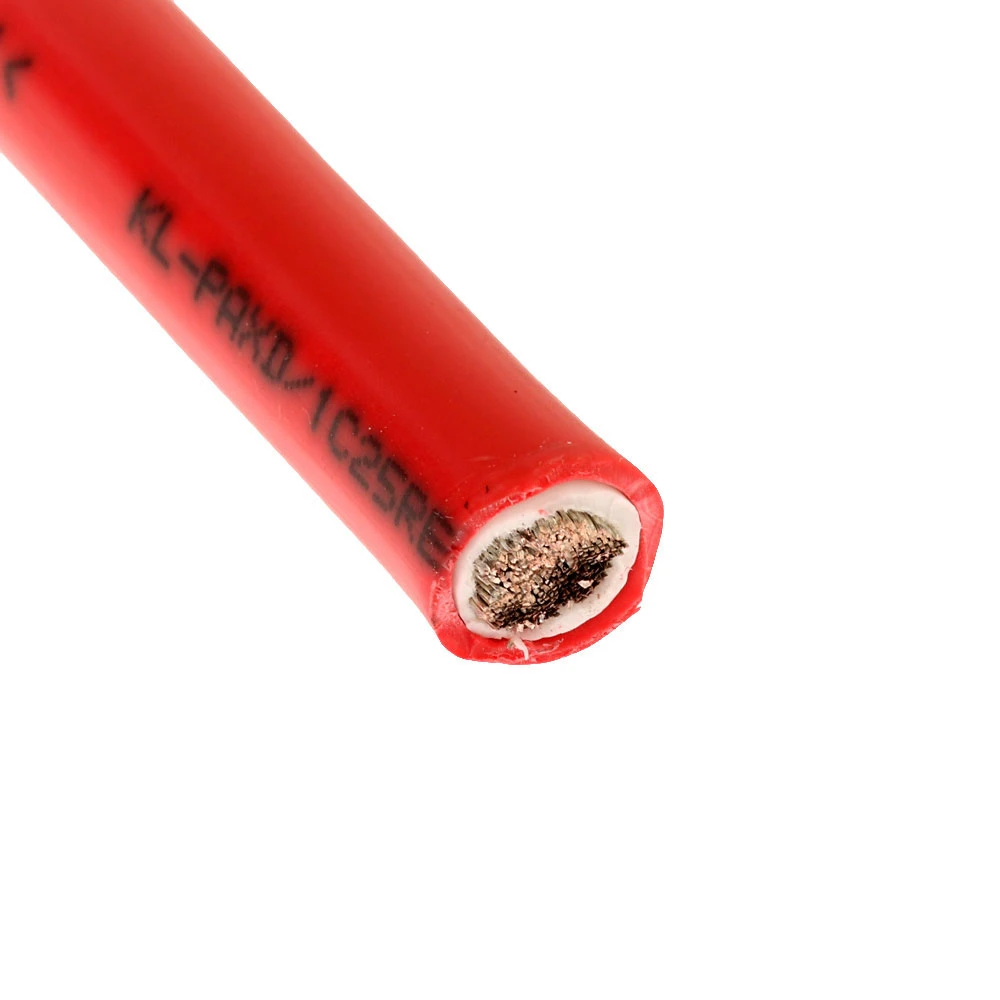

BEP Marine Flexible Battery Cable Red Per Metre

The optimum combination of flexibility and strength

The BEP Marine Flexible Battery Cable is the
finest quality marine electrical wiring cable around. This wire is
designed for applications that require a high current, such as a
starter motor, alternator or anchor winch. Very fine 0.2mm copper
wires are used to construct a flexible conductor that complies with
all international standards. A double insulation system is then
extruded over the conductor to provide electrical strength and
durability. The sheath does not sustain combustion and
self-extinguished immediately upon removal of the flame source.

BEP Marine Flexible Battery Cable Features:

• Especially manufactured for optimum
  handling/installation
• Outstanding sheath flexibility dramatically improves ease of
  installation and stripping of cable ends is faster
• Low friction E-Rubber jacket with 110 degrees C rating
• Splash resistant to petrochemicals and acids
• UV and abrasion resistant
• Submersible to 500m
• Conductor high quality tinned and annealed fine strand copper
  to IEC 60228 and AS/NZS 1125
• Heavy duty 0.6/1 kV insulation rating
• Colour: Red (10-75mm)
• Metre marked 100M rolls, available by the metre
• Standards: AS/NZS 1125, 1660.5.1, 1660.5.6, 3008.1, 3808,
  AS/NZS 5000.1, IEC 60228, 60332-1, 60332-3-22

Current Rating Table:

Conductor Size mm2	Current Rating
10mm	86A
16mm	112A
25mm	149A
35mm	184A
50mm	232A
70mm	292A
95mm	352A
120mm	417A

Note: This product is sold per metre and can
be cut to your required length. Just indicate the number of metres
in the Qty box (e.g. 3 metres = qty: 3). You can also detail your
requirements in the comments field when you checkout. Bulk item
shipping rates (see table) only apply if your total ordered rope
lengths reach over 20kg. Bulk items are shippable to New Zealand
only.
