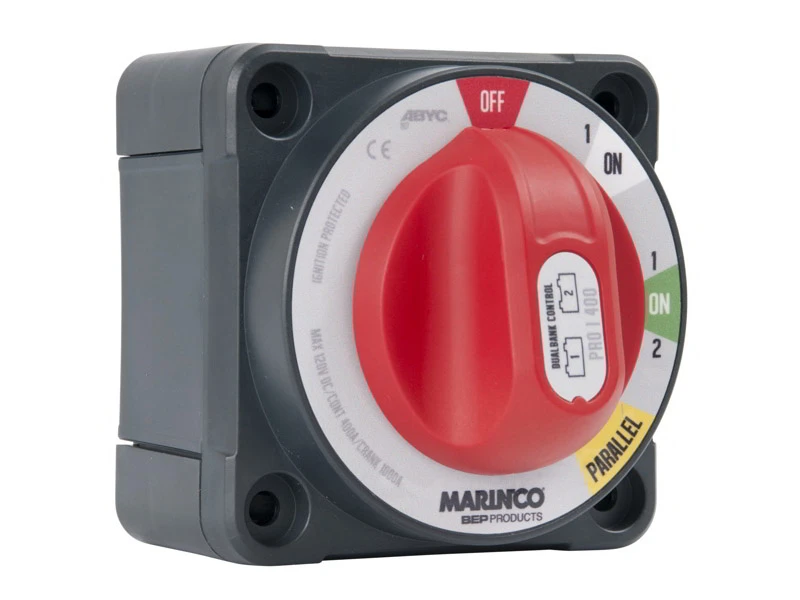

BEP Marine Pro Installer MC10 Dual Bank Control Switch 400A

3 switches in one!

Another addition to the multi-award winning Pro Installer EZ Mount
range, the innovative Pro Installer MC10 Dual Bank Control
Switch is like 3 switches in one; House, Start and
Emergency Parallel. Offering easy intuitive control for the boater,
the Dual Bank Control switch features a unique isolated-On position
which allows use of house loads and VHF radio if the engine needs
to be electrically isolated or allows the engine to be isolated
during servicing while still providing power to house loads (for
lighting, stereo, fridge etc). For boats or vehicles with single
engine and house battery bank, Dual Bank Control allows the use of
optimised battery banks for their respective loads; an
appropriately sized deep cycle bank for house loads and thin plate
starting batteries for the engine. Further, sensitive electronics
are isolated from starter motor induced voltage spikes because
house and engine loads are separated during normal operation,
unlike selector battery switches.

As easy as 1, 2, 3, these revolutionary EZ Mount Pro
Installer MC10 Dual Bank Control Switch allows you to wire
from the front for the easiest surface mounting. With its shared
interconnection height, EZ-Mount battery switches “cluster”
directly with the Pro Installer Busbar range, resulting in the
fastest, most compact installations. Optimised cable access makes
installation a breeze.

Pro Installer MC10 Dual Bank Control Switch 400A
Features:

• Tested to UL1107 ignition protection, CE
• Tinned copper 10mm (3/8 inch) studs
• Stainless steel washers and nuts
• Fiber reinforced plastics
• 400A Continuous / 600A 5 minutes Intermittent / 1500A 10
  seconds Cranking (cable size to achieve ratings 120mm², 4/0,
  smaller cable size will reduce the Amp rating)
• Waterproof to IP67
• Same interconnection height as Pro Installer
• Removable knob allows isolation during servicing
• 3 removable side plates for protection
• Industry standard 3.85 x 3.85 inch footprint
• For surface mounting only
• Each Pro Installer battery switch is fully tested for pressure
  sealing, rotation force and electrically load tested
